- Material: Cast iron; Weight: 10 kg

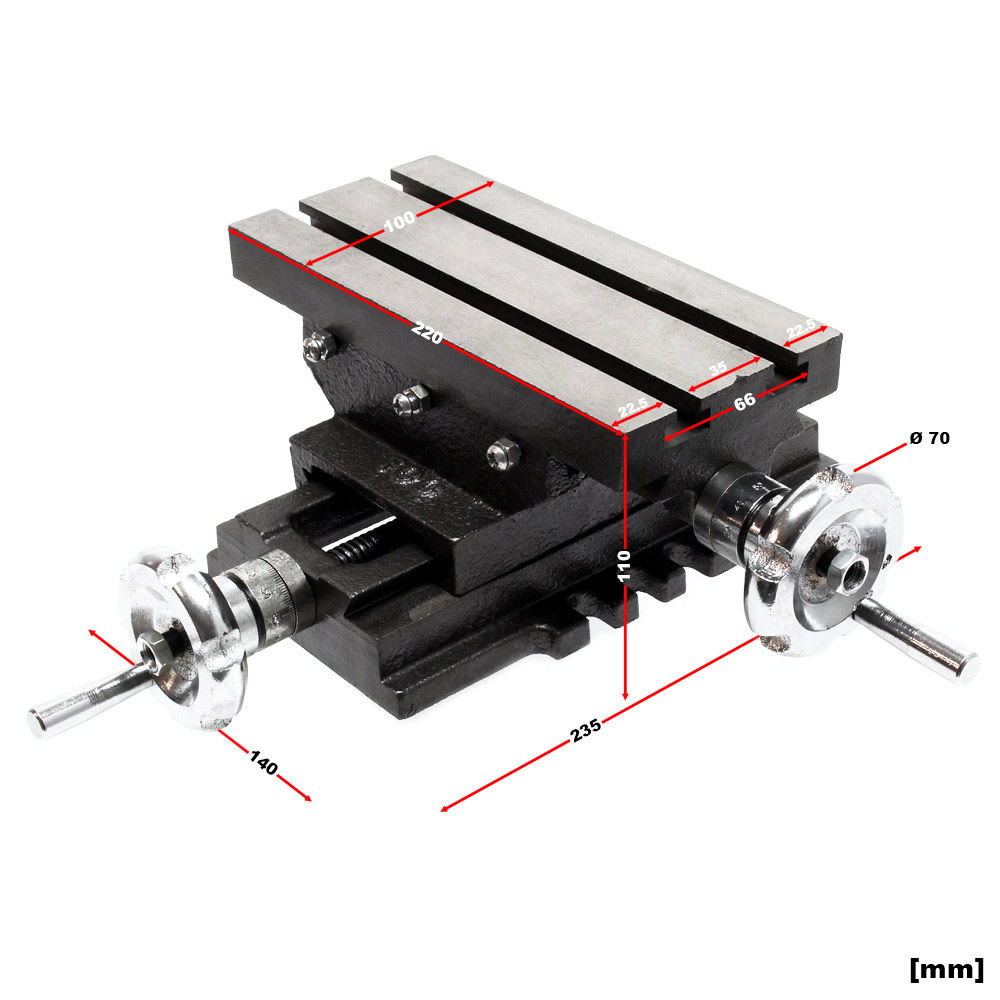

- Dimensions: 220 x 100 mm
- X-axis Travel: 120 mm
- Y-axis Travel: 90 mm

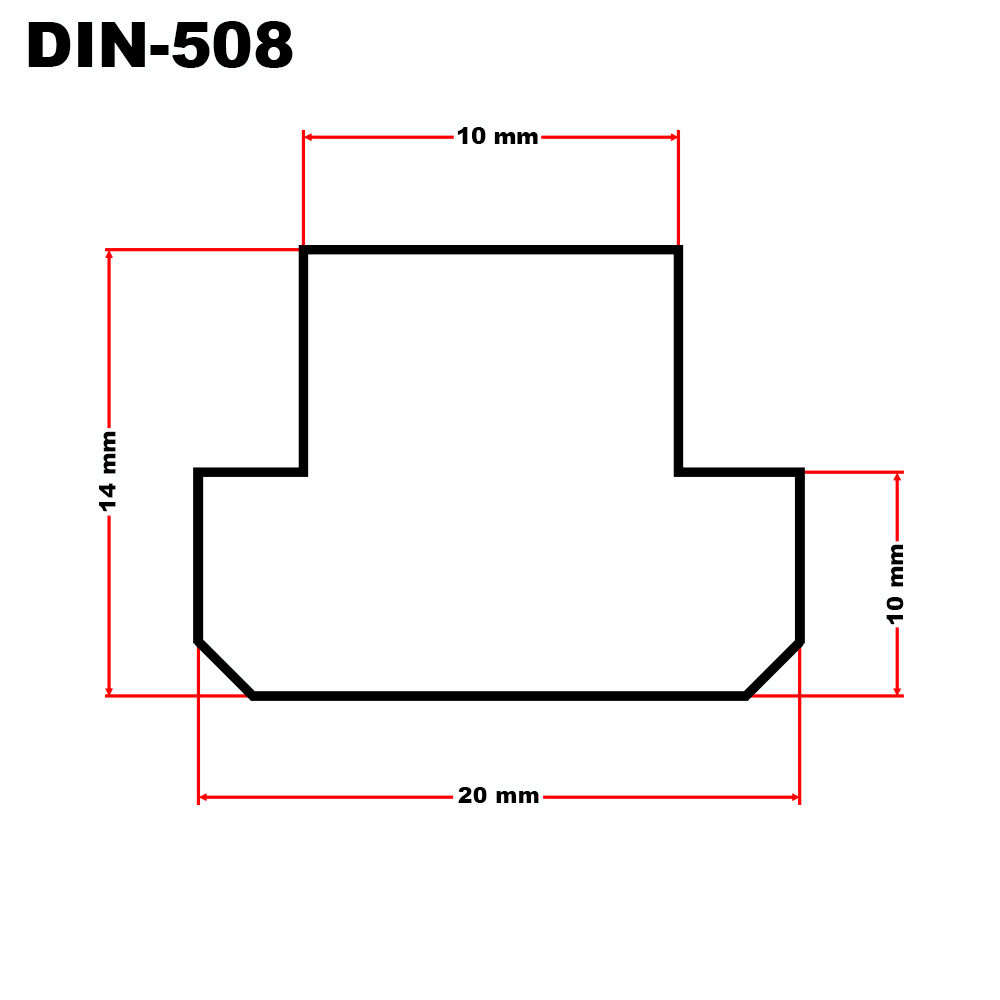

- 10mm T-slot nominal (according to DIN-508)

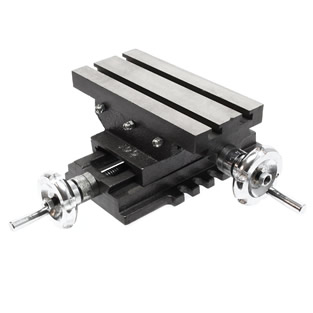

This cross table is the perfect tool for precise drilling and milling projects and is suited for application in both, hobby as well as professional environments as it is compatible with almost all workbenches. Made of sturdy cast iron and being equipped with hardened axes, even heavy items can be effortlessly fastened and then securely be worked on.
The cross table consists of leads, the so-called axes, which can be set to different angles as they overlap. The X-axis thereby has a travelling distance of 120 mm while the Y-axis has a travelling distance of 90 mm. Within these boundaries, the work piece can easily be brought into any position, manageable by the axes.
